HTP 090 THREE STATION BALL CRATERING/MICROSCALE ABRASION

HIGH THROUGHPUT TRIBOMETER





  •


    • Single function
    • Multi-station
    • Easy to Operate
    • Control via PLC




    Description

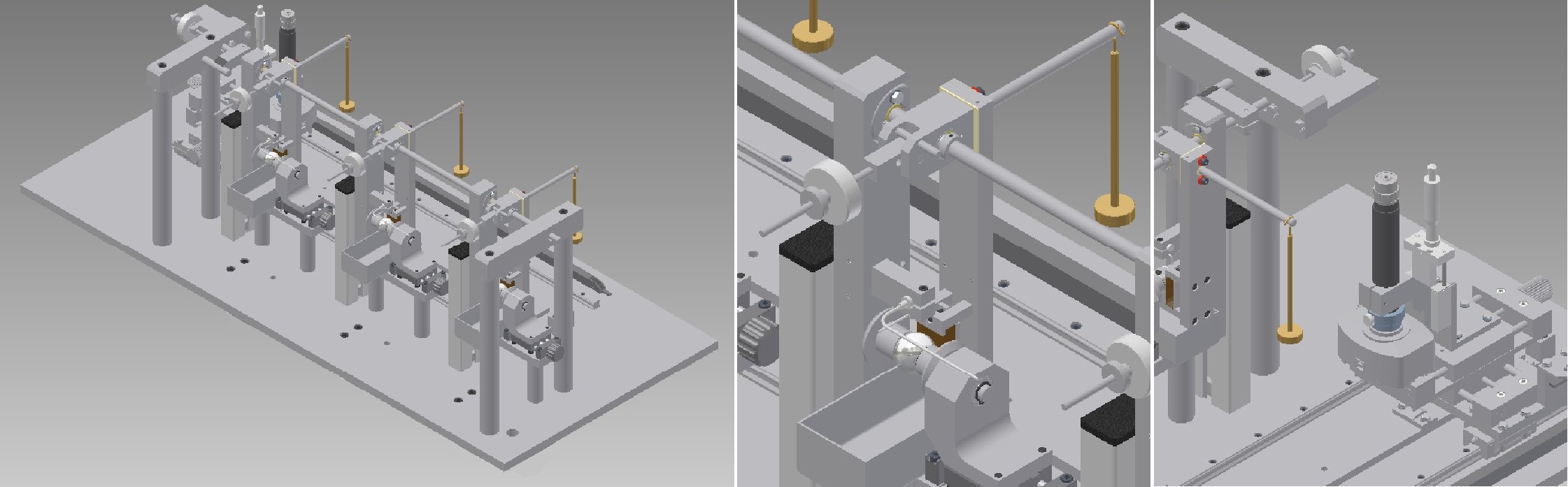

    This is a three station version of the standard TE 66 Micro Scale Abrasion Tester, which has been built as both single and multi-station versions, for many years. This instrument represents a rationalistion of the most recent multi-station design.

    The unit is used to determine the wear coefficient of hard and soft coatings and monolithic materials, by abrasive wear, in a ball on plate contact configuration, in accordance with BS EN 1071-6. The instrument may also be used as a crater-generating tool on coated surfaces for coating thickness determination.

    Ball scar measurements are made in situ using a USB microscope camera, with software running on a user provided laptop or PC.
    The machine is designed to be bench-mounted, with installation footprint kept to a minimum. It is simple to operate, so requires minimal training. Control is implemented with a PLC, with inputs via touch-screen.

  • Specifications

    Motion Rotary
    Load 0.1 to 5 N
    Diameter 25 mm
    Speed 30 to 150 rpm
    Temperature Ambient °C
    Test Stations 3
    Manually Set Parameters
    Load Yes – dead-weight
    Rotational Speed Yes
    Test Duration Yes
    Data Logged Parameters N/A
