HTP 030 THREE STATION FOUR BALL FRICTION & WEAR

HIGH THROUGHPUT TRIBOMETER





  •


    • Single function
    • Multi-station
    • Simple to Operate
    • Control via PLC
    • Data exported on USB stick




    Description

    This instrument is a development of the TE 94 Three Station Rotary Tribometer.

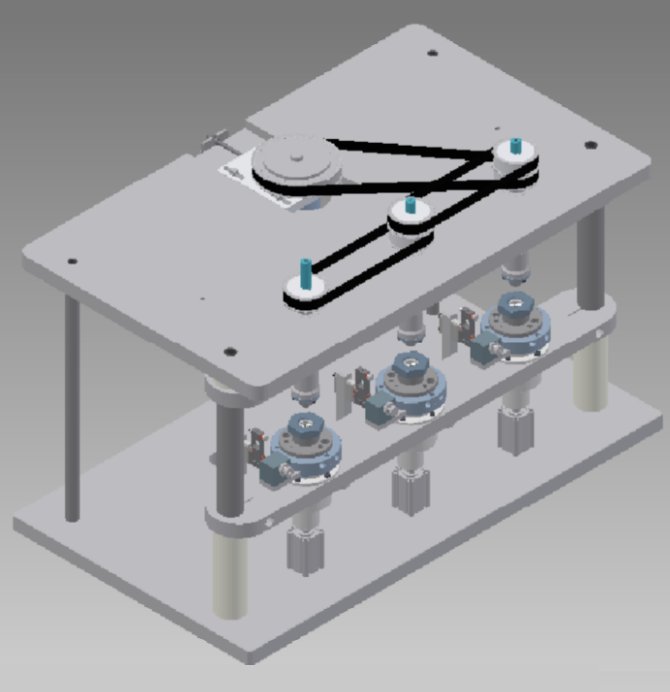

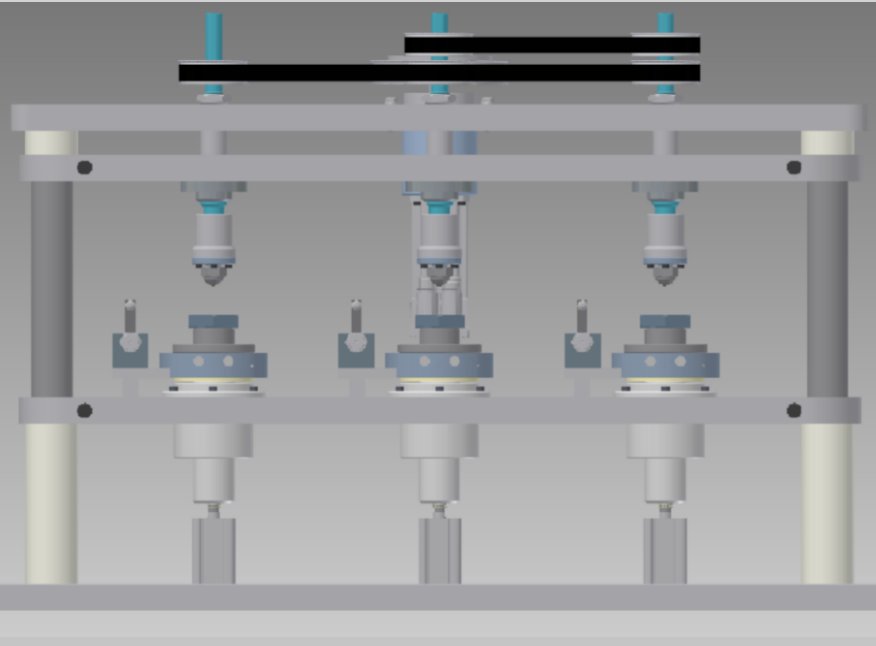

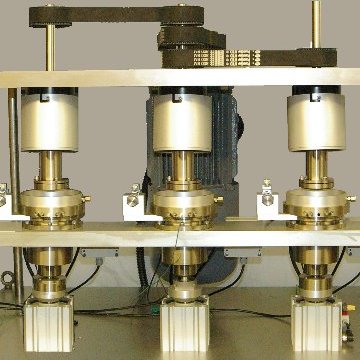

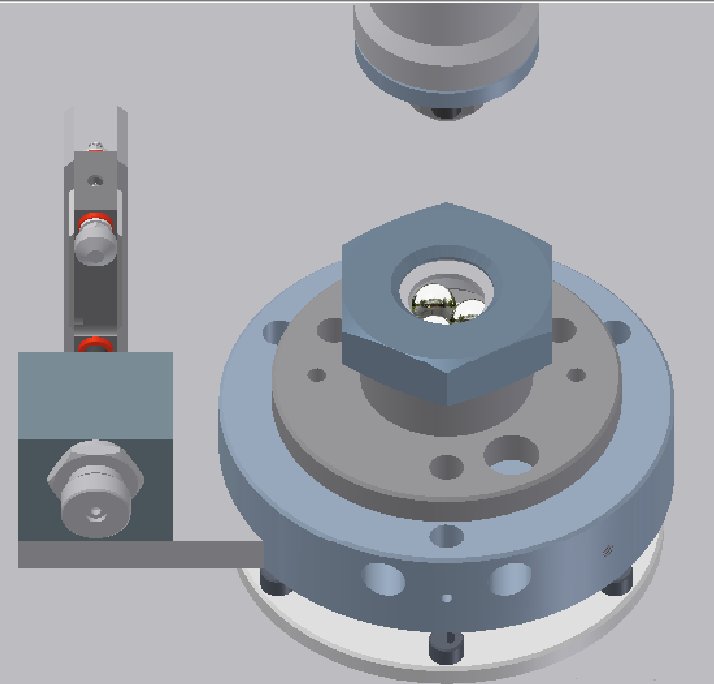

    This machine is designed to run multiple sliding four ball friction and wear tests, under identical test conditions. Sensors are provided for measurement of friction and sample temperature on each test station.

    Load is applied to each test station by means of pneumatic cylinders, connected in parallel. Pressure to the cylinders is manually controlled by means of a precision pressure regulator. Test may be run in accordance with the guidelines laid out in ASTM D2266, ASTM D4172 and ASTM D5183.

    The machine is designed to be bench-mounted, with installation footprint kept to a minimum. It is simple to operate, so requires minimal training. Control is implemented with a PLC, with inputs via touch-screen. Data is stored by the device and exported on USB stick.

  • Specifications

    Motion Rotary
    Load 50 to 1200 N
    Diameter 12.7 mm
    Speed 6 to 1200 rpm
    Temperature Ambient to 150 °C
    Test Stations 3
    Manually Set Parameters
    Load Yes – pneumatic
    Rotational Speed Yes
    Temperature Yes
    Test Duration Yes
    Data Logged Parameters
    Load Pressure Transducer
    Temperature Yes – each sample
    Friction Force Yes – each sample
